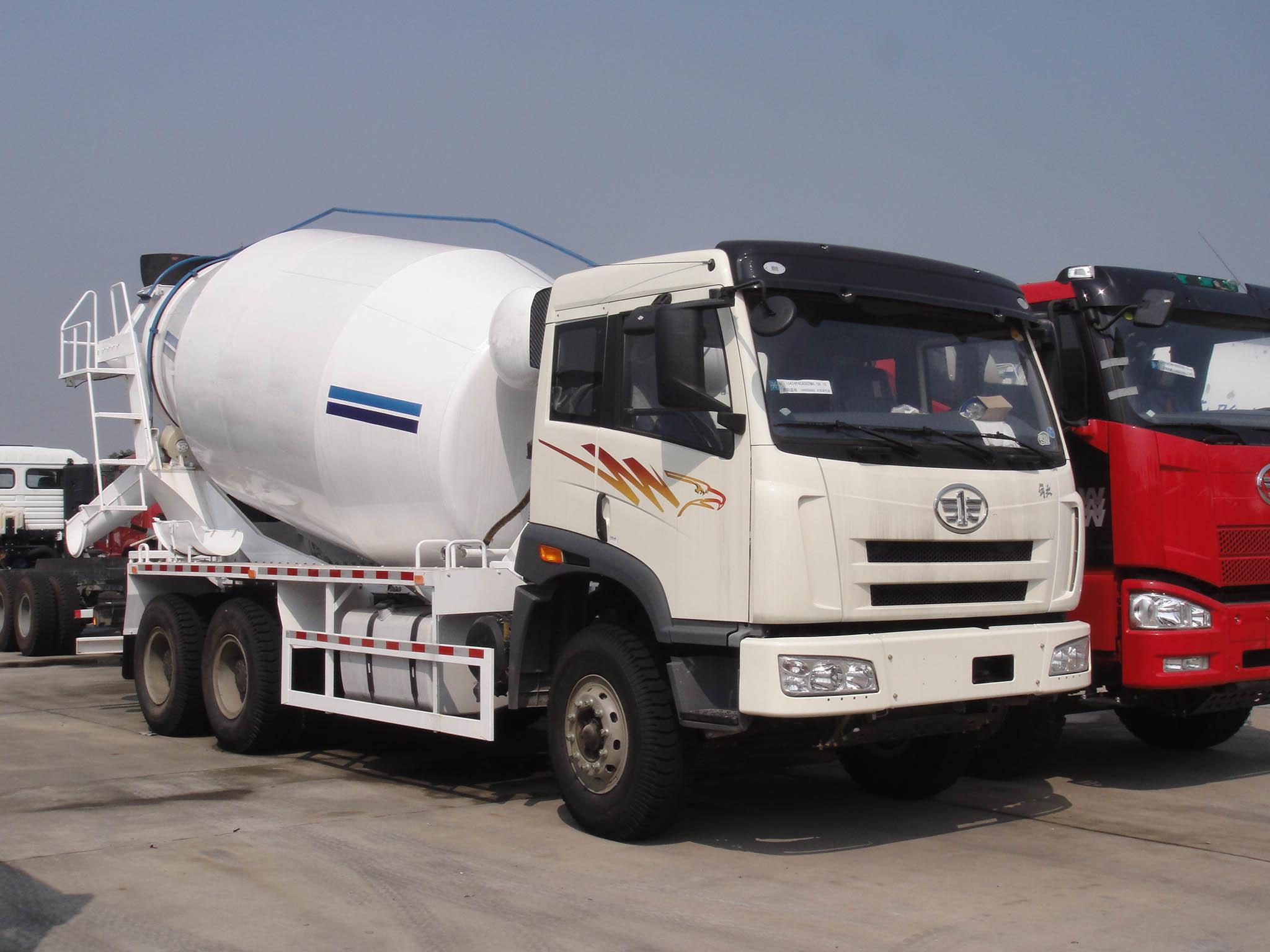

HM14-D cement mixer truck
HM14-D cement mixer truck with 14 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 14 cubic meter concrete mixer truck can adapt to varied harsh conditions and improves its service life.
The Classification of HM14-D Concrete Truck Mixer:
1. According to the shipment of concrete moisture in the concrete mixer truck, there can be divided into wet material type, material type and semi-dry material type three concrete mixer truck.
2. Wet material concrete mixer truck can ship the concrete by concrete batching plant produced or the aggregate (sand and gravel), cement and water, during transport, wet material concrete mixer truck trough slowly stirring constantly to prevent concrete initial and segregation during transport.
3. From the production to the casting of concrete, the period can not be more than 1.5h to avoid concrete setting.
4. Dry material concrete mixer truck can pour the aggregate and cement directly into the car's agitation barrel.
5. During transport dry material into barrel is stirred when the mixer truck arrive at the construction site, then add water stirring to complete the concrete.
6. Semi feed mixing truck in the shipment of concrete aggregate and cement which is prepared according to the ratio, and contain some water, when the mixer truck reach the construction site or at the construction site add water and stir.
The Features of HM14-D Concrete Truck Mixer
1. Concrete homogeneous good
2. The residual rate is far below the industry standard
3. Its simplified and blades made of high quality wear-resistant steel.
The HM14-D cement mixer truck also called 14m3 concrete mixer truck, 14 cubic meter concrete mixing truck, mixing concrete truck, concrete mix truck,cement mixing truck,etc.Our 6m3 concrete mixer truck is mainly used in cement mixing station, construction field. and other place.It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Specifications
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
14 |
Tank Volume |
m³ |
20.1 |
Feeding Speed |
m³/min |
≥3.5 |
Discharging Speed |
m³/min |
≥3 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
400 |
Overall Dimension |
mm |
10300*2496*3920 |
Chassis Model |
|
HOWO |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
245 |
Max Speed |
km/h |
90 |
Engine Max Output Power |
kw |
340 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
16000 |
Overall Weight |
kgs |
31000 |
Wheelbase |
mm |
1800+3200+1350 |
As you can see, these different Concrete Mixer Truck types can create a range of different concrete mixer Truck in different time frames. Some are for very specific purposes while others cover a wider range of construction needs. If you still have questions about the different concrete mixer Truck types or for more information, please contact us.E-mail: wade@haomei.biz
