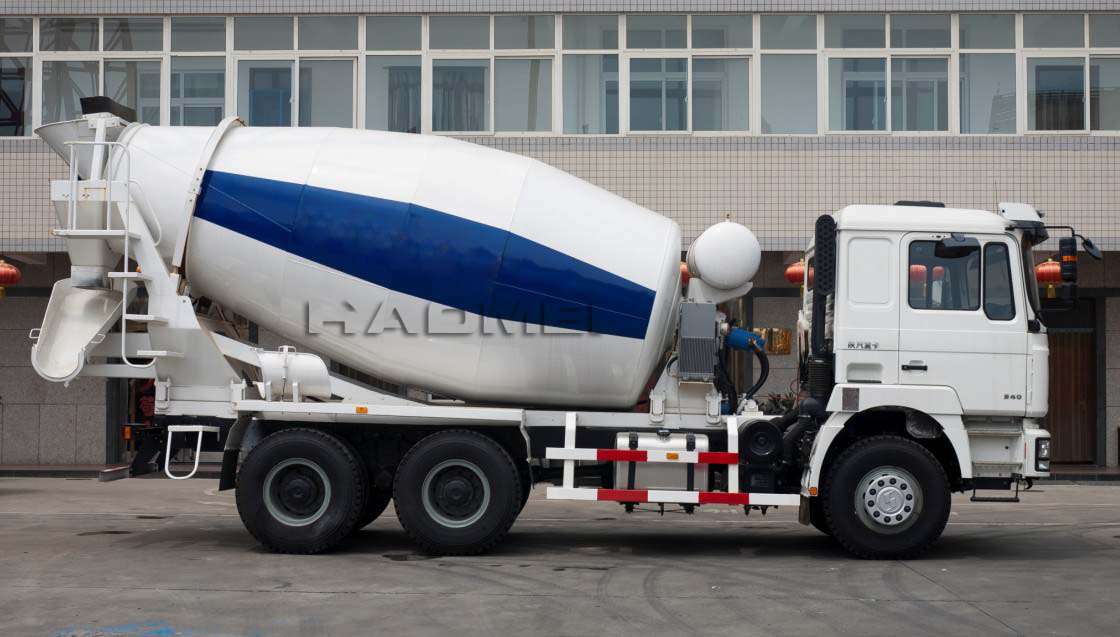

HM9-D cement mixer truck
HM19-D cement mixer truck with 9 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 9 cubic meter concrete mixer truck can adapt to varied harsh conditions and improves its service life.
HM19-D cement mixer truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
2. HM19-D cement mixer truck (concrete mixer truck) has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
The Features of HM9-D Concrete Truck Mixer:
1. Featuring better wear-resistance and long service life
2. Optimized mixing blades, low material residue
3. High-quality parts, reliable running
The HM9-D cement mixer truck also called 9m3 concrete mixer truck, 9 cubic meter concrete mixing truck, mixing concrete truck, concrete mix truck,cement mixing truck,etc.Our 6m3 concrete mixer truck is mainly used in cement mixing station, construction field. and other place.It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Specifications
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
9 |
Tank Volume |
m³ |
14.7 |
Feeding Speed |
m³/min |
≥3.5 |
Discharging Speed |
m³/min |
≥3 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
300 |
Overall Dimension |
mm |
9050*2496*3750 |
Chassis Model |
|
HOWO |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
314 |
Max Speed |
km/h |
90 |
Engine Max Output Power |
kw |
276 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
13500 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
3825+1350 |
As you can see, these different Concrete Mixer Truck types can create a range of different concrete mixer Truck in different time frames. Some are for very specific purposes while others cover a wider range of construction needs. If you still have questions about the different concrete mixer Truck types or for more information, please contact us.E-mail: wade@haomei.biz
