mini concrete batching plant

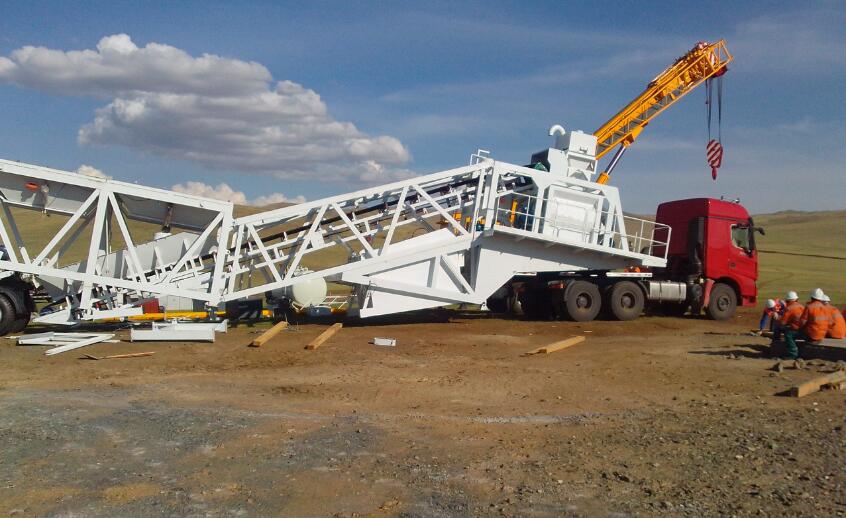

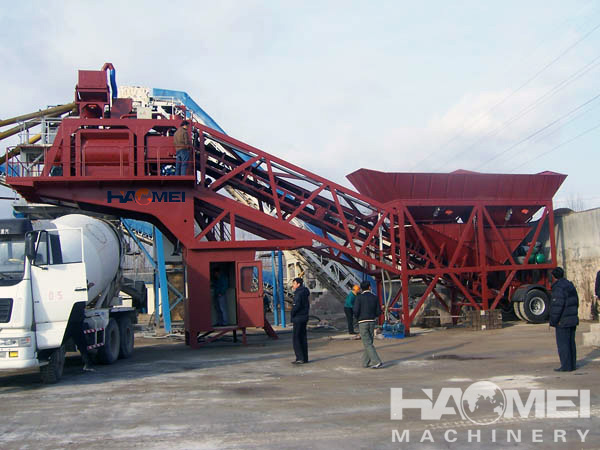

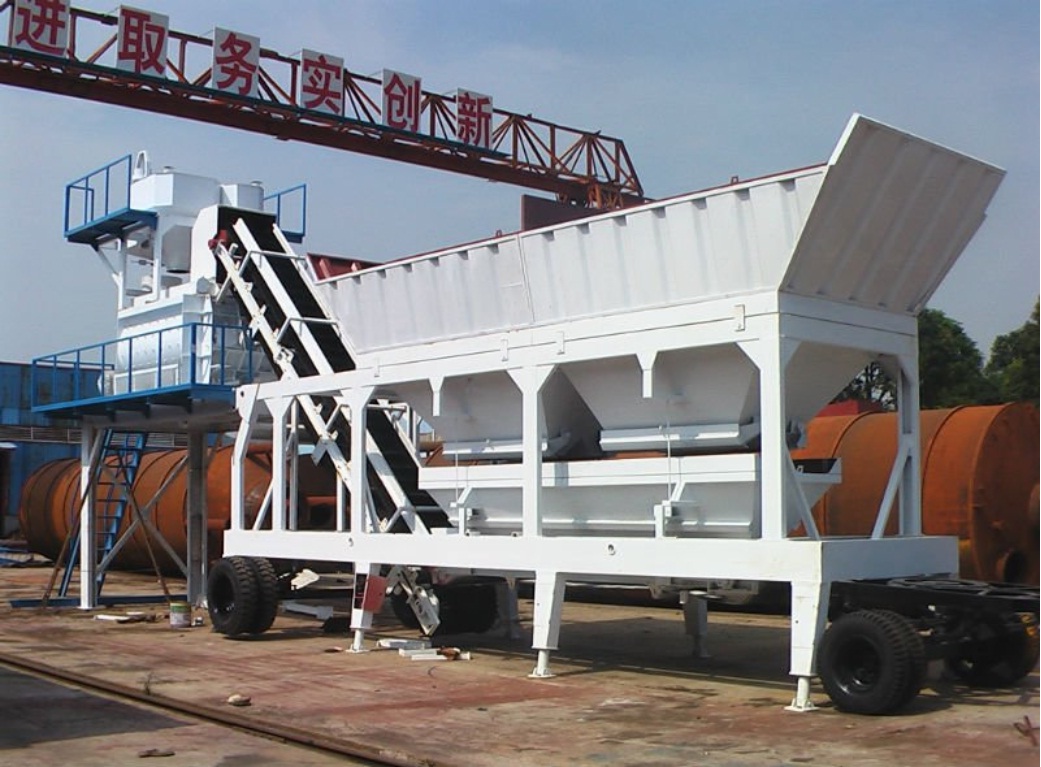

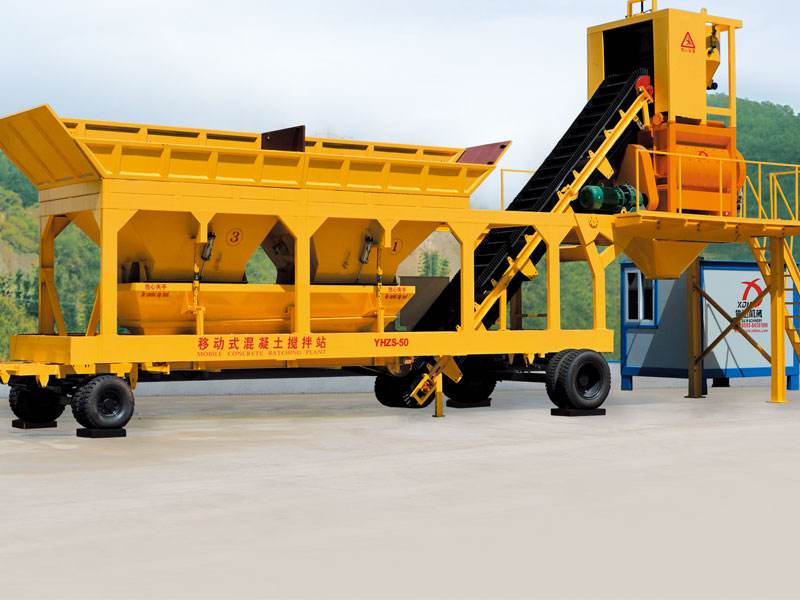

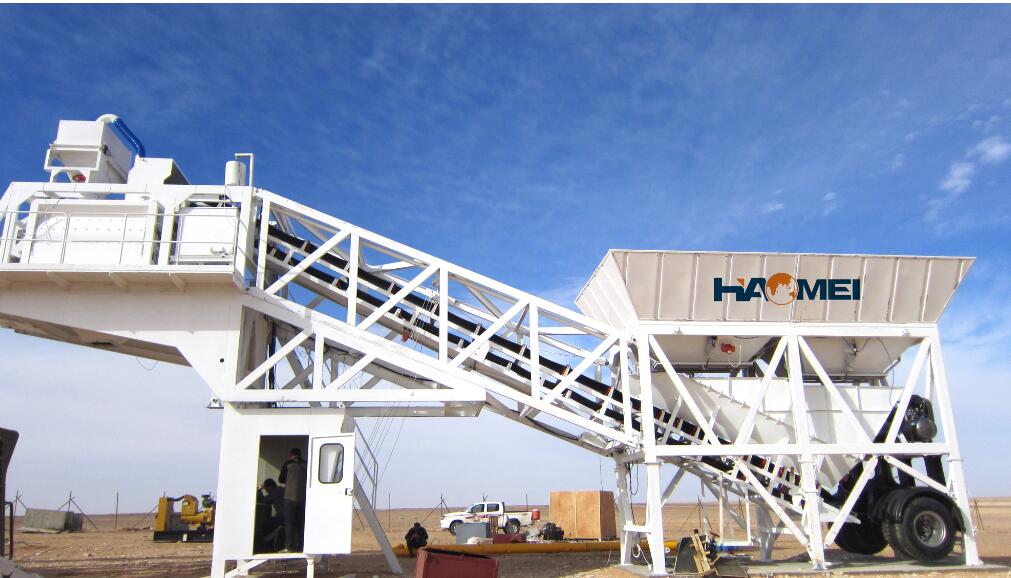

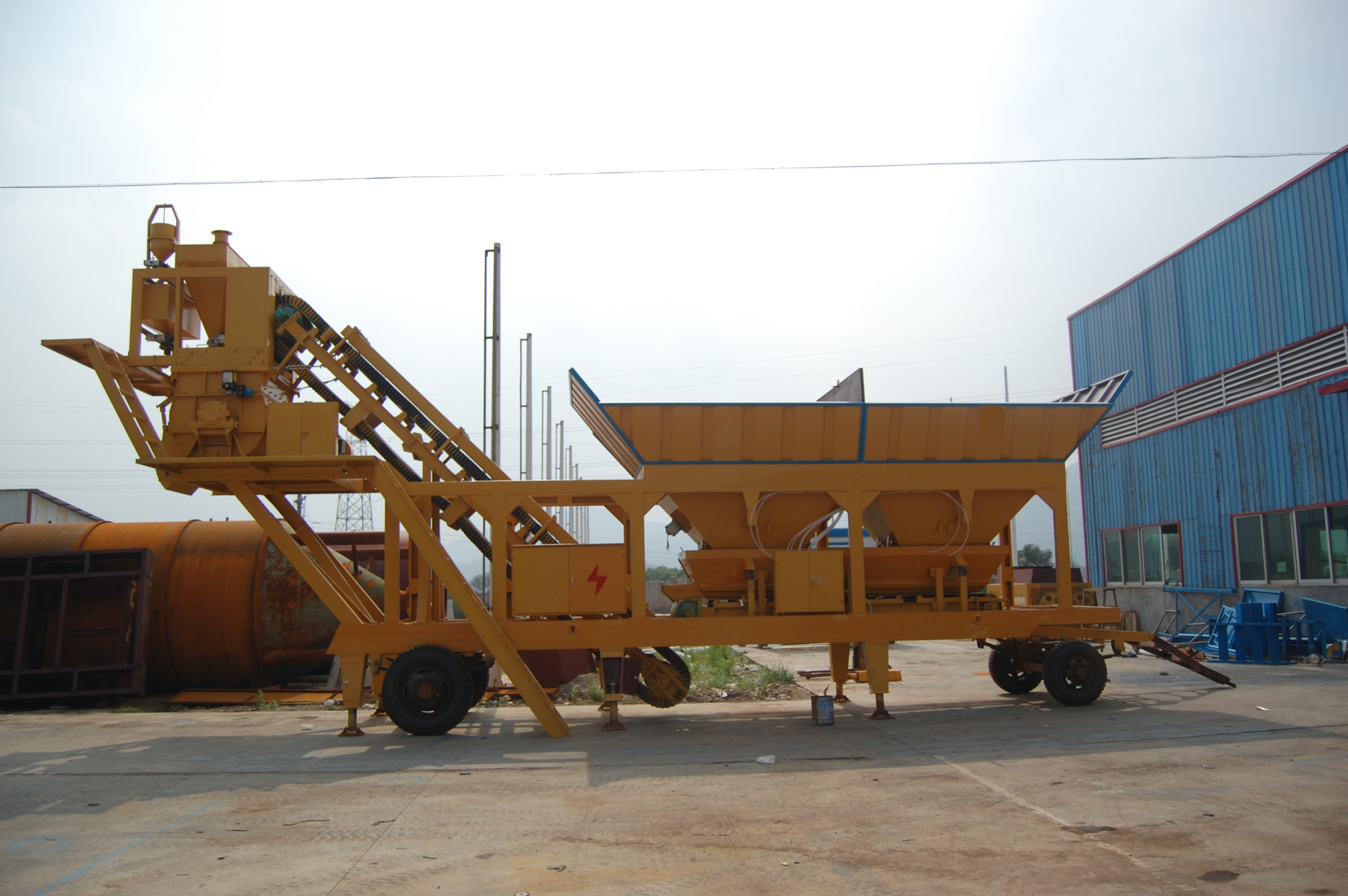

Mini concrete batching plant is a kind of portable concrete mixing machine. Compared to stationary concrete batching plant, it is flexible to move, therefore, this kind of machine is more suitable for such construction projects of short construction period, long construction line, and need to change the construction site momentarily.
This concrete batching plant is an integrated unit,which is used to mix the concrete intensively and mechanically, they are well suited to mix those concrete of fluidity concrete, semi dry and hard concrete and no-slump concrete. And it is commonly applied in large and medium-sized water conservancy, electricity, bridge and so on construction projects.
Mini concrete batching plant is very suitable for the bridge and road built in urban and new countryside. And it will produce enough concrete for the construction project. Moreover, the low mini cement plant project cost makes the plant become one of the most popular equipment in the small project. If you get a mini plant, you will benefit a lot from it. On the one hand, the plant occupies a limited area, and it is easy to set. On the other hand, it only need several operators to operate and maintain the equipment.
Specifications
Type | 25m³/h | 35m³/h | 60m³/h | 75m³/h | |
---|---|---|---|---|---|
Theoretical production capacity(m³/h) | 25 | 35 | 60 | 75 | |
Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
Aggregate Bin volume(m³) | 3.2 | 7.3 | 8.3 | 12 | |
Weighing Accuracy | Aggregate (KG) | ±2% | ±2% | ±2% | ±2% |
Cement(KG) | ±1% | ±1% | ±1% | ±1% | |
Fly ash(KG) | ±1% | ±1% | |||
Water (KG) | ±1% | ±1% | ±1% | ±1% | |
Additive(KG) | ±1% | ±1% | ±1% | ±1% | |
Total power(KW) | 50Kw | 64Kw | 85Kw | 110KW | |
Discharging height(M) | 2.8 m | 2.8 m | 2.8 m | 3.8m | |
Gross weight(T) | 12 | 16 | 20 | 50 |
Mini Concrete Batching Plantlayout
Mini Concrete Batching Plant for sale mainly consists of material storage system, material weighing system, material conveying system, mixer, control system and other components.
Material Storage system mainly includes dosing machine and cement silos. The feeding system, electric control system and weighing system are the main parts of the dosing machine. Feeding system has the function of storing and feeding materials to weighing hopper.
Material weighing system is the key part of the dosing machine, and it includes weighing hopper, weighing sensor and proportioning control system, which weighs the aggregates accurately. It is worth mentioning, the aggregates can be weighed respectively or intensively. The respective weighing has the advantages of high efficiency and accurate weighing; while the intensive weighing has low cost. The dosing machine has noble structure, and the key components adopts the well-known brand, which ensures the reliable performance. The cement silo of mini batch plant has the functions of preventing the leakage and agglomeration of powder, so the operator can check the materials level through the material level display system.
Material conveying system consists of aggregate hosting system and screw conveyor. The hosting system conveys the aggregates into the mixer by belt or hopper, and the screw conveyor transfers the cement and fly ash into the powder weighing hopper.
Control system includes semiautomatic control and full automatic control system. The full automatic control system can display the details clearly. If the clients need mini cement plant project report, the plant can print the form conveniently. As for the semiautomatic type, it has relatively lower cement plant project cost.
The mixing system adopts compulsory concrete mixer. When the mixer works, the blades cut, squeeze the materials violently, which ensures the high efficiency and good quality of mixing.
