HZS120 concrete plant
HZS120 concrete plant(Ready-mixed concrete Batching plant), also named as concrete mixing plant, is developed by our company on the basis of adopting the world’s sophisticated technologies, this concrete Batching plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years
HZS120 Concrete Batching Plant is equipped with JS2000 twin-shaft mixer and PLD3200 aggregate bin. It can meet the high standard of concrete production. The fully automatic control system can adds different concrete production formulas and plans, achieving the needs of producing various grades of concrete.
HZS120 concrete plant makes the maximum productivity to 120 cubic meter per hour. The 120 cubic meter batching plant adopts a modular structure that can be assembled and disassembled rapidly using common hardware. This makes it convenient to move.
Specifications
Specification |
Unit |
Value |
Productivity |
m3/h |
120 |
Capacity of Mixer |
m3 |
2 |
Mix Power |
kw |
74 |
Discharge Height |
m |
3.8 |
Aggregate Bin |
Quantity |
4 |
Aggregate Bin Capacity |
m3 |
3.2 |
Max. Weighing Value of Aggregate |
kg |
2x3000 |
Max. Weighing Value of Cement |
kg |
1200 |
Max. Weighing Value of Water |
kg |
600 |
Max. Weighing Value of Additive |
kg |
50 |
Aggregate Measuring Accuracy |
% |
±2% |
Water Measuring Accuracy |
% |
±1% |
Cement Measuring Accuracy |
% |
±1% |
Additive Measuring Accuracy |
% |
±1% |
Cement Silo |
_ |
Optional |
Cement Screw Conveyor |
_ |
Optional |
Cement Silo Capacity |
_ |
Optional |
Control Mode |
_ |
Auto/Semi Control |
The Introduction of HZS120 Concrete Plant Components:

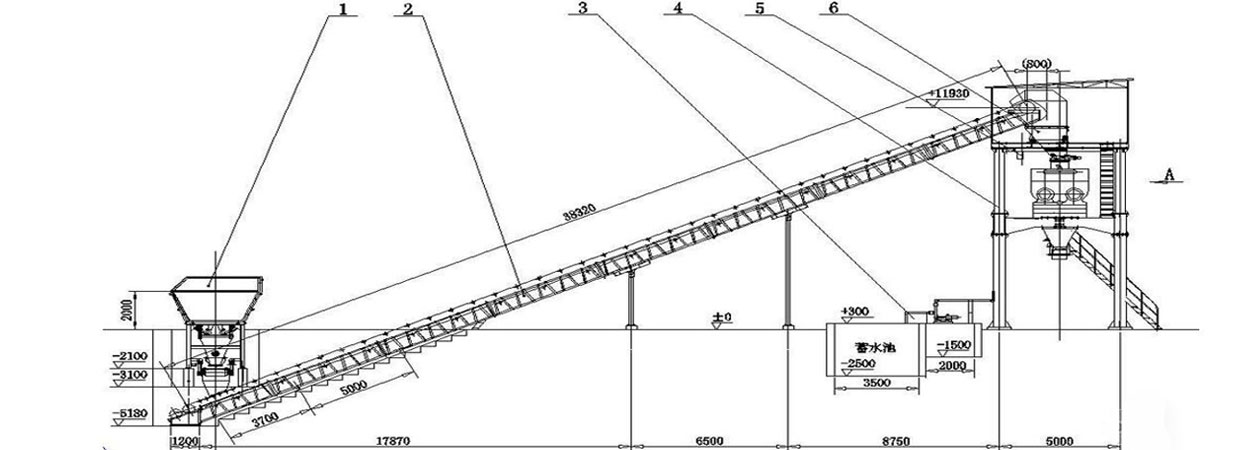

concrete batching plant layout
1). Batching System
Using PLD3200 batching machine with high stability and efficiency. The batching aggregates can be 3-5types. 18m3 Basic Storage Bins Volume, 11kw Motor, Belt width of 1000mm
2. Mixing system
The mixer is SICOMA MAO 3000/2000 or JS2000 twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. 4.2 m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Auto lubrications. The main shaft driving system refers to Italian SICOMA technology. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.3). Control System
1. Realize the material metering station, transporting, mixing, unloading of automatic production process. With functions of real-time data processing, automatic control or manual operation, simple and convenient operation.r
2.Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.
About HZS120 concrete plant knowledge
- 1 The capacity of the concrete plant is theoretical productivity, and the actual capacity may be less than the theoretical value.
- 2. The floor space refers to the footprint of the main body of the concrete batching plant. It does not include the floor space of the aggregate yard, living area, laboratory and other functional areas. The concrete plant of the same type may adopt different structural forms according to the needs of users. The footprint and standard footprint are different.
- 3. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual needs.
