HZS25 small concrete plant
HZS25 small concrete plant has the characteristics such as compact structure, convenient disassembly, small footprint, easy transition, ect. It is especially suitable for small and medium-sized or temporary projects, prefabricated parts factories, brick factories and so on.
HZS25 small concrete plant consists of the mixing system, batching system, metering system and control system. It adopts JS500 concrete mixer with 0.5 m³ per batch. This batching plant transports aggregate with hopper, which saves the footprint and improves land utilization. HZS25 small concrete plant is equipped with PLD800 aggregate bin with 2 or 3 silos. According to customers' actual demands, Camelway configures fully automatic, semi-automatic or manual control systems. The fully automatic control system adopts computer control to realize automatic control, production management and report printing of the production process.
Specifications
Nos | Items | Technical parameters |
1 | Theoretical productivity | 25m3/h |
2 | Mixer Model | JS500 |
3 | Mixing motor power | 18.5kW |
4 | Cycle | 60s |
5 | Mixer nominal capacity | 1200L |
6 | The maximum aggregate particles | Φ80mm |
7 | Silos capacity | 1×100t or 1×50t |
8 | Aggregate bin capacity | 4×6m3 |
9 | Aggregate Number | 2-4 |
10 | Maximum capacity of screw conveyor | 30m³/h |
11 | Discharge height | 3.8/4.2m |
12 | Total power | 50.25kW |
13 | Aggregate weighing range and accuracy | (0~1200)±2%kg |
14 | Cement weighing range and accuracy | (0~1200)±1%kg |
15 | Water weighing range and accuracy | (0~600)±1%kg |
16 | Additive weighing range and accuracy | (0~50)±1%kg |
The Introduction of HZS25 Concrete Plant Components:

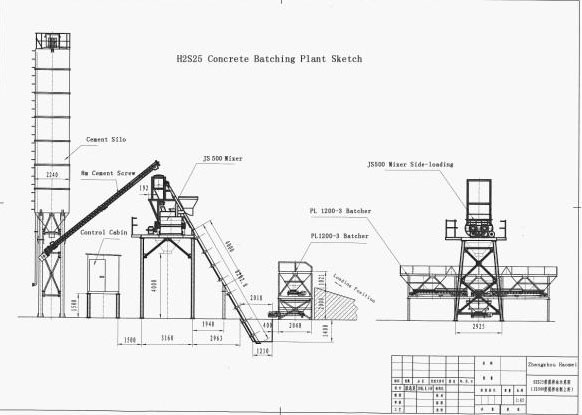

concrete batching plant layout
1). Aggregate Batching Machine
1.1. This series of products adopt electronic weighing, digital display.
1.2. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation, reasonable design, compact structure and long service life.
1.3. Widely used in all kinds of small and medium sized construction project and concrete plant.
2. Batching Machine JS500
2.1. Shaft end sealing adopts pressure difference and multi-heterodyne sealing technology to extend shaft end’s service life.2.2. National patented taper mixing arm
2.3. National patented monitoring system to control every part of mixer
2.4. Advanced hydraulic pressure system is adopted to open and close the discharging door.
2.5. Lubrication system to make the mixer service a long life.
2.6. Water spraying by multiple tube and circuit system.
3). Control System
3.1. Realize the material metering station, transporting mixing, unloading of automatic production with function of real-time data processing the system can automatic control, which can also be manual operation, the operation is simple and convenient.
3.2. Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.
