HZS180 concrete plant
HZS180 concrete plant(Ready-mixed concrete Batching plant), also named as concrete mixing plant, this production line belongs to the big type mixing plant,,is developed by our company on the basis of adopting the world’s sophisticated technologies, this concrete Batching plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years
HZS180 series concrete plant productivity theory 180m3 / h, concrete mixer model JS4000, mixing console power of 110KW, total power equipment package for 200KW, warehouse cell including 4 grid batching machines, batching capability 240m3, cement weighing range and accuracy (0 ~ 1500) 1% kg, additive weighing range and accuracy (0 ~ 50) 1% kg, discharge height of 4 meters.
HZS180 concrete plant consists of two rows of cement silo and a series of screw conveyor, controlled by a microcomputer control room side jobs throughout the concrete mixing station.
Specifications
Specification |
Unit |
Value |
Productivity |
m3/h |
180 |
Capacity of Mixer |
m3 |
3 |
Mix Power |
kw |
110 |
Discharge Height |
m |
3.8 |
Aggregate Bin |
Quantity |
4 |
Aggregate Bin Capacity |
m3 |
4.8 |
Max. Weighing Value of Aggregate |
kg |
2x4000 |
Max. Weighing Value of Cement |
kg |
1800 |
Max. Weighing Value of Water |
kg |
800 |
Max. Weighing Value of Additive |
kg |
50 |
Aggregate Measuring Accuracy |
% |
±2% |
Water Measuring Accuracy |
% |
±1% |
Cement Measuring Accuracy |
% |
±1% |
Additive Measuring Accuracy |
% |
±1% |
Cement Silo |
_ |
Optional |
Cement Screw Conveyor |
_ |
Optional |
Cement Silo Capacity |
_ |
Optional |
Control Mode |
_ |
Auto/Semi Control |
The Introduction of HZS180 Concrete Plant Components:

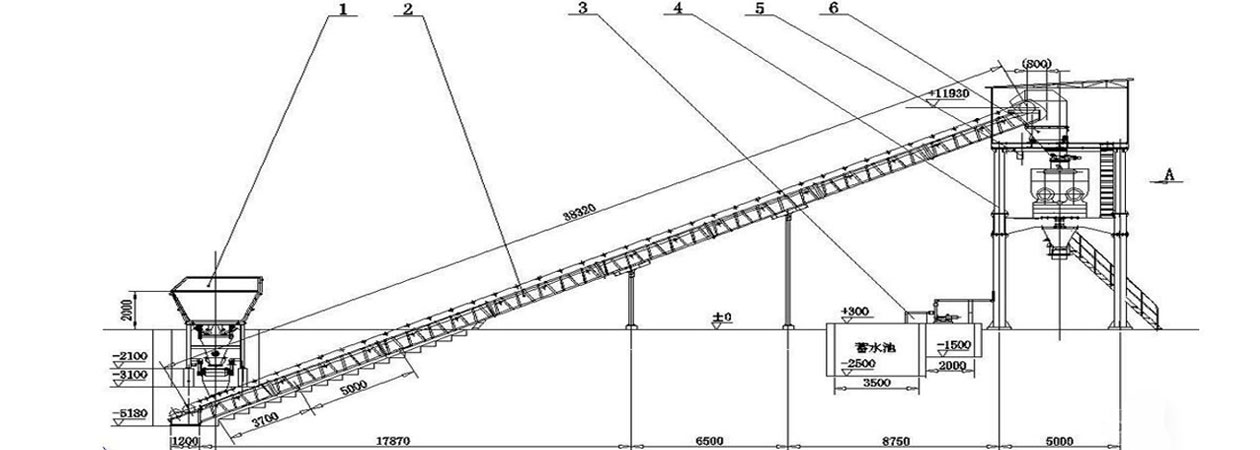

concrete batching plant layout
1). Batching System
PLD4800 aggregate batcher and individually weigh system will improve the efficiency of weighing system.
2. Mixing system
1. Modular design structure, which is easy to install and disassemble 2. With JS4000 or SICOMA Concrete Mixer, high efficiency productivity and mixing performance 3. Accuracy weighing system, water, ash, aggregate, cement will be weighing accurately, which improves the quality of concrete.3). Control System
1. Realize the material metering station, transporting, mixing, unloading of automatic production process. With functions of real-time data processing, automatic control or manual operation, simple and convenient operation.r
2.Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.
About HZS180 concrete plant knowledge
- 1 The capacity of the concrete plant is theoretical productivity, and the actual capacity may be less than the theoretical value.
- 2. The floor space refers to the footprint of the main body of the concrete batching plant. It does not include the floor space of the aggregate yard, living area, laboratory and other functional areas. The concrete plant of the same type may adopt different structural forms according to the needs of users. The footprint and standard footprint are different.
- 3. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual needs.
