HZS90 concrete plant
HZS90 concrete plant(Ready-mixed concrete mixing plant), also named as concrete plant, is developed by our company on the basis of adopting the world’s sophisticated technologies, this concrete Batching plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years
This ready-mixed concrete plant adopts JS1500 twin-shaft concrete mixer or Original SICOMA mixer, transporting aggregates with belt conveyor,It is equipped with PLD2400 aggregate bin with 4 silos. At the same time, HZS90 concrete plant can meet the high standard of concrete production. The fully automatic control system not only controls the production process of each process, but can adds different concrete production formulas to meet the needs of producing various grades of concrete.. It is the ideal concrete plant for construction projects, power station, roads, harbor, bridge, airport, large precast products plant and commercial concrete factories.
HZS90 concrete plant makes the maximum productivity to 90 cubic meter per hour. The 90 cubic meter batching plant adopts a modular structure that can be assembled and disassembled rapidly using common hardware. This makes it convenient to move.
Specifications
Specification |
Unit |
Value |
Productivity |
m3/h |
90 |
Capacity of Mixer |
m3 |
1.5 |
Mix Power |
kw |
44 |
Discharge Height |
m |
3.8 |
Aggregate Bin |
Quantity |
4 |
Aggregate Bin Capacity |
m3 |
2.4 |
Max. Weighing Value of Aggregate |
kg |
6000Kg |
Max. Weighing Value of Cement |
kg |
1000Kg |
Max. Weighing Value of Water |
kg |
500Kg |
Max. Weighing Value of Additive |
kg |
50Kg |
Aggregate Measuring Accuracy |
% |
±2% |
Water Measuring Accuracy |
% |
±1% |
Cement Measuring Accuracy |
% |
±1% |
Additive Measuring Accuracy |
% |
±1% |
Cement Silo |
_ |
Optional |
Cement Screw Conveyor |
_ |
Optional |
Cement Silo Capacity |
_ |
Optional |
Control Mode |
_ |
Auto/Semi Control |
The Introduction of HZS90 Concrete Plant Components:

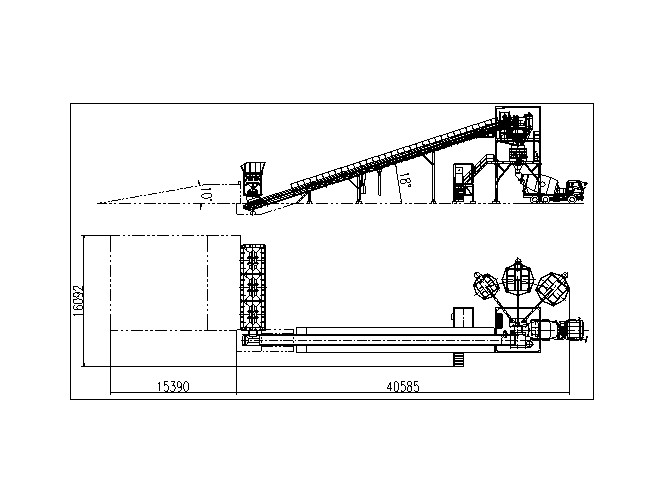

concrete batching plant layout
1). Aggregate Batching Machine
1. Adopts modular structure, easy to install and assembly and convenient to transport.
2. The mixing console adopts JS1500 twin shaft compulsory concrete mixer.
3. using PLD2400 batching machine. The batching aggregates can be 3-5types. 7m3 Basic Storage Bins Volume, 7.5kw Motor, Belt width of 800mm..
4. Computer control system can keep the accuracy and stable measurement performance.
2. Mixing system
1. This ready-mixed concrete plant adopts JS1500 twin-shaft concrete mixer or Original SICOMA mixer2. Not only work independently, also can work with PLD series aggregate batcher to make a simple concrete plant or adopted as the mixer in the high-end concrete batching plant.
3). Control System
1. Realize the material metering station, transporting, mixing, unloading of automatic production process. With functions of real-time data processing, automatic control or manual operation, simple and convenient operation.r
2.Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.
About HZS90 concrete plant knowledge
- 1 The capacity of the concrete plant is theoretical productivity, and the actual capacity may be less than the theoretical value.
- 2. The floor space refers to the footprint of the main body of the concrete batching plant. It does not include the floor space of the aggregate yard, living area, laboratory and other functional areas. The concrete plant of the same type may adopt different structural forms according to the needs of users. The footprint and standard footprint are different.
- 3. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual needs.
